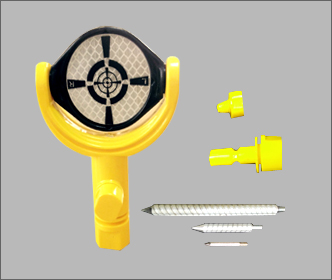

Optical target is used to measure the deformations of structure in 3 dimensional at a point. It gives very precise information about the movement from remote. Precise Total Station is used in recording the data. The monitoring can be performed from either side of target as per site conditions. The monitoring using optical target is also known as 3D monitoring.

Applications:
→ Convergence monitoring of tunnel.
→ Movement of rock in underground activity.
→ Building settlement monitoring.
→ Land slide monitoring
→ Inclination monitoring of dam

Specifications:
Optical Range : 250m with precise Total Station
Accuracy : ±1mgon
Measurement in Distance : ±1mm
Weight : 200g
Anchor Size :
As per site requirement. Standard size
9mm dia, 65mm long
12mm dia, 100mm long
16mm dia, 250/500/1000mm long
20mm dia, 250/500/1000mm long
