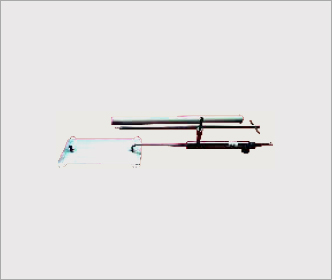

Vibrating wire concrete Pressure cells are used for the measurement of tangential and radial stresses in concrete and shotcrere tunnel linings. The typical application includes:

• Pressure on and within linings of underground excavations
• Monitoring of stress distribution within rock

Specifications:
Capacity : (Mpa) 1,2,3, 5,10,15
Accuracy : ±0.5%FS
Resolution : ±0.05%FS
Over Range : 150%
Material : Stainless Steel
Thermistor : YSI 44055 or equivalent, 3KΩ at 25°C
Operating Temperature : -20 to +80°C
