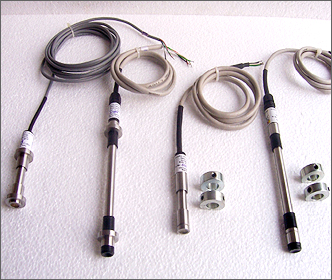

VW Strain Gauges are designed to weld, paste, embedment in soil or concrete for strain monitoring in steel/concrete structures and consists of vibrating wire element anchored at each end. Loading of the structures changes the length of the tube and results in changes in the tension of the wire. An electromagnet is used to pluck the tensioned wire and measure the frequency of the vibration.

Applications:
Monitoring of strain/load in Steel Structures, Piles, Reinforced Bars, Dams, Bridges, Building

Features:
Quick and easy installation - Low Profile - High compliance - Pretensioned Wire - Excellent long term stability Quick and easy installation

Specifications:
Sensor Type: Vibrating wire
Range: ± 3,000 microstrain
Resolution: 1.0 microstrain
Accuracy: ±0.1% FSR
Operating Temp.: -20℃ ~ 80℃
Gauge Length: 50mm, 125mm
