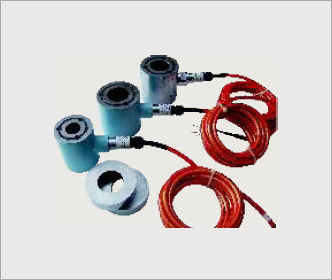

Centre-hole load cells are designed to measure compressive and tensile loads in tiebacks, rock bolts, and cables. Typical applications include:

• → Proof testing and performance monitoring of tiebacks, rock bolts, and other anchor systems.
• → Monitoring loading of vertical supports in underground openings.

Specifications:
Capacity : (kN) 50 to 3000
Accuracy : ±0.5% FS
Resolution : ±0.05%FS
Over Range : 150%
Material : Stainless Steel
Operating Temperature : -20 to +80°C
