Vibrating Wire Crack Meter AIS 1420

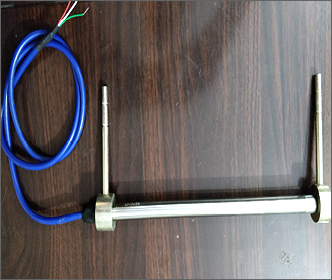

The vibrating wire crack meter is
used to monitor movement of
joints of structure. It is suitable for
installation in dam gallery,
building or on any structure crack.
APPLICATIONS
The typical application of crack
meter is monitoring of movement
at constructions joints in concrete
dam, tunnels and tanks or
masonry structures.
FEATURES
Quick and easy installation
→ Excellent long term stability
→ Ease in automation
→ No effect of cable length on signal transmission
SPECIFICATIONS
Sensor Type - Vibrating wire
Range - 0-50mm, 100mm, 150mm and 200mm
Resolution - 0.1mm
Accuracy - ±0.25% FSR
Operating Temp. - -20℃ ~ 80℃
Ingres Protection - Confirms IP 65
Sensor Material - Stainless steel
