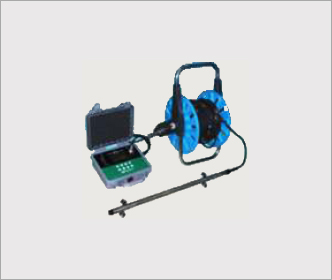

Vertical inclinometer provides accurate profile of lateral deflection in two perpendicular planes.

• → Monitoring slopes and landslides to detect zones of movement and establish whether movement is constant, accelerating, or responding to remedial measures.
• → Monitoring diaphragm walls and sheet piles to check that deflections are within design limits, that struts and anchors are performing as expected, and that adjacent buildings are not affected by ground movements.
• → Monitoring dams, dam abutments, and upstream slopes for movement during and after impoundment.
• → Monitoring the effects of tunneling operations to ensure that adjacent structures are not damaged by ground movements.

Specifications:
Probe : Biaxial
Range : ±30°
Resolution : 0.01mm
Sensor accuracy : ±0.02% FS
Probe Lengt : 500mm
Operating Temperature : -20 to +60°
System Accuracy : ±2mm (over 25m)
