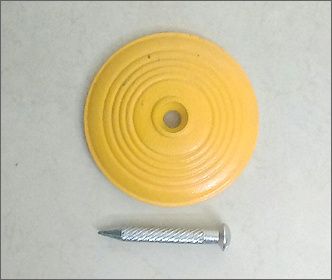

Pavement settlement point is made of aluminium Die cast and MS nail having 10mm dia and semi spherical on top. The diameter of pavement marker is 110mm with a small projection on one face. The pavement settlement points are used to monitor the road or pavement settlement. It is generally installed on road or pavement by drilling a small hole and grouted using cement/ epoxy to ensure the intactness with road/pavement which is moveable.
The reading is being taken using Digital level/ Total Station and staff.

Specification:
Diameter: 110mm
Thickness: 15mm
Nail: Length: 80mm
Diameter: 10mm
