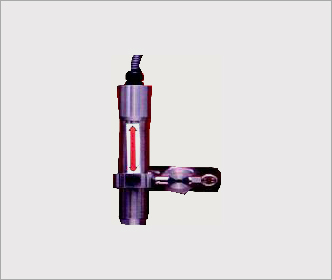

Tilt Sensors are used to monitor changes in the tilt of a structure. Such changes may be caused by excavation, tunneling, dewatering, or loading of the structure. Typical applications for tilt sensors include:

• → Monitoring stabilization measures, such as pressure grouting and underpinning.
• → Monitoring structures for the effects of tunneling and excavating.
• → Monitoring the deflection and deformation of retaining walls.
• → Monitoring convergence and other movements in tunnels.
• → Providing early warning of threatening deformations, allowing time for corrective action to be taken.

Specifications:
Applied Sensor : Vibrating Wire
Range : ±5° ±10°
Resolution : 5arc second /10arc second
Accuracy : ±0.1%FS
Non Linearity : ±0.5%FS
