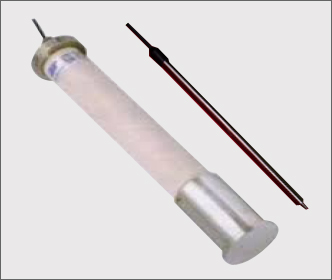

The vibrating wire linear joint meter is used to monitor movement of joints of structure. It is suitable for directly embedment in mass concrete of dam or installation on surface joints of structure.

APPLICATIONS
Steel Structures, Piles, Dams, Bridges, Building, Building etc.

FEATURES
→ Quick and easy installation
→ Excellent long term stability
→ Ease in automation
→ No effect of cable length on signal transmission

SPECIFICATIONS
Sensor Type - Vibrating wire
Range - 0-50mm and 100mm
Resolution - 0.1mm
Accuracy - ±0.25% FSR
Operating Temp. - -20℃ ~ 80℃
Ingres Protection - Confirms IP 65
Sensor Material - Stainless steel
