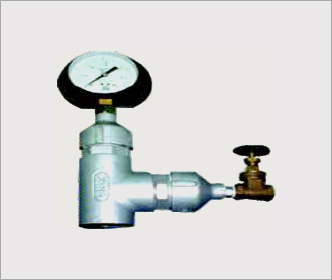

Uplift pressure meters are installed in foundation gallery of dam to monitor the uplift water pressure acting on foundation. It consists of reducers, T-assembly, cock valves, nipples and Burdon Pressure Gauge. The vibrating wire sensor can also be used at the place of Burdon Pressure gauge, if the data is to be recorded in automatic mode.

Range : 0-5 or 10 bar
Accuracy : ±0.5% FS
Accessories:
Raiser Pipe : GI of PVC, diameter 50mm length 1m, 2m, 3m.
Perforated Section : GI or PVC, diameter 50mm length 1m
